Part # Type  Shielding  AWG  Stranding  # of Elements  Insulation Material  Jacket Thickness  Applicable Specifications
74005 Conductor  FOIL_BRAID  22  19/34  PP    CE, CSA FT2, IEC EN 60811-2-1 , ISO_IEC 11801, ROHS - RoHS Compliance
(Ctrl+Click if PDF doesn't appear)
  Diameters (In)

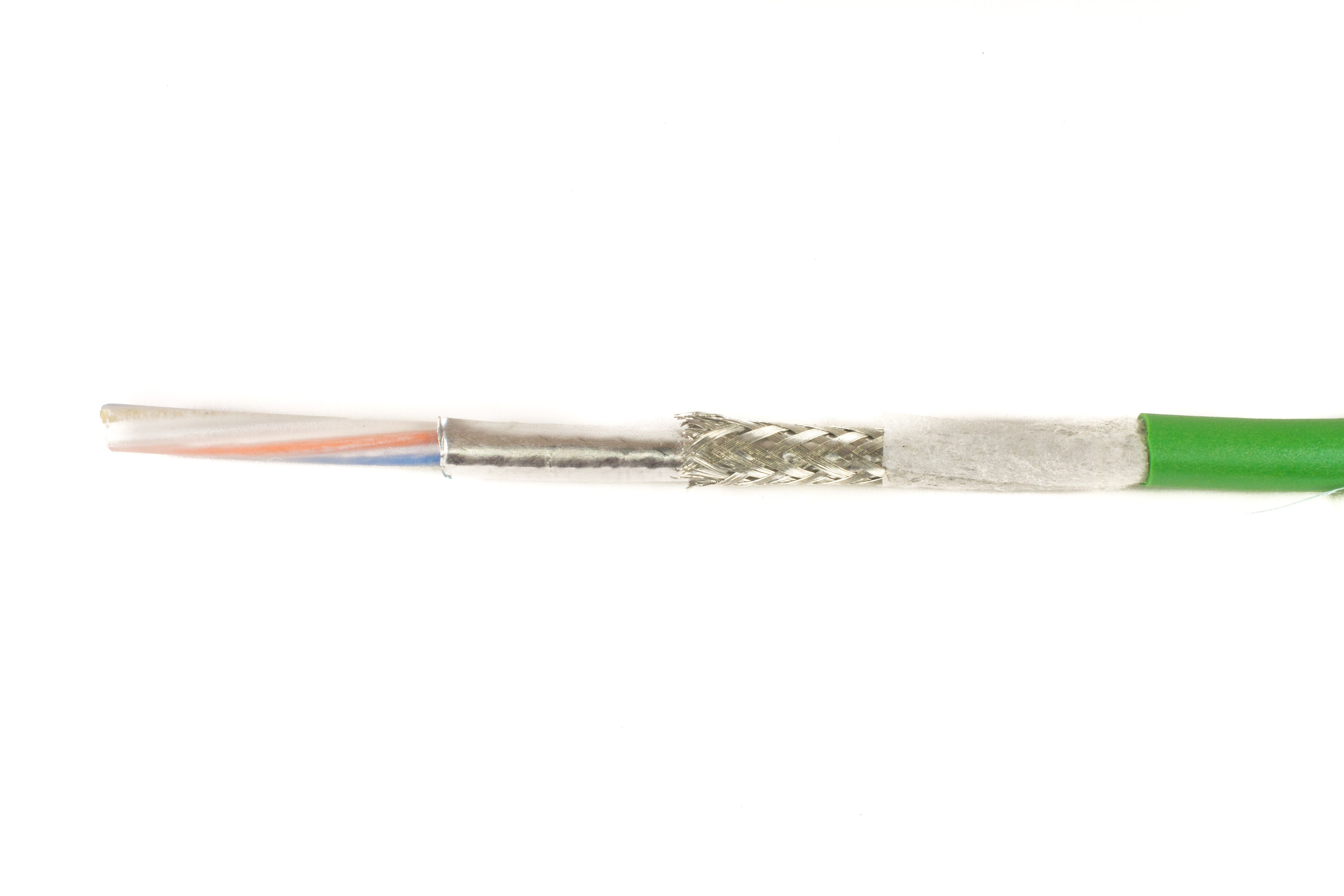

1) Component 1 1 X 4 COND
a) Conductor 22 (19/34) AWG Tinned Copper 0.032
b) Insulation 0.0145" Wall, Nom. Polypropylene(PP) 0.061
(1) Color(s)
Cond Color Cond Color Cond Color
1 WHITE 3 YELLOW
2 BLUE 4 ORANGE
c) Cabling 4 COND Cabled
(1) Twists: 6.9 Twists/foot (min)
d) Jacket 0.010" Wall, Nom.,TPE 0.169
(1) Color(s) WHITE
2) Shield: Alum/Mylar Tape, 25% Overlap, Min.
a) Foil Direction Foil Facing Out
b) Braid Tinned Copper,85% Coverage, Min.
3) Jacket 0.031" Wall, Nom., TPU (ZH) 0.256 (0.271 Max.)
a) Color(s) GREEN
b) Jacket Separator Nonwoven Polyester Tape, 25% Overlap, Min.
c) Print ALPHA WIRE-* P/N 74005 4C 22 AWG
INDUSTRIAL ETHERNET PROFINET TYPE C
SHIELDED CAT5 FT2
CE ROHS (SEQ FOOTAGE)
* = Factory Code
1) CSA International FT2
2) IEC EN 60811-2-1 Oil Resistance
3) Other ISO/IEC 11801 Category 5
4) CE: EU Low Voltage Directive 2014/35/EC
1) CE: EU Directive 2011/65/EU(RoHS2):
  This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C.
2) REACH Regulation (EC 1907/2006):
  This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.
Physical & Mechanical Properties
1) Temperature Range -40 to 80°C
2) Bend Radius 4X Cable Diameter(static), 5X Cable Diameter(dynamic)
3) Pull Tension 28 Lbs, Maximum
4) Torsional Flex 2 million cycles

Electrical Properties (For Engineering purposes only)
1) Max. operating voltage UL 300 VRMS
2) Test voltage wire-wire/wire-screen 2.5kVdc
3) Maximum conductor DC-resistance @ 20°C 57.1 Ω/km
4) Transfer impedance @ 10MHz < 10 mOhm/m
5) Nom. velocity of propagation 68 %
6) Delay < 5.3 ns/m
7) Impedance @ 1 – 100 MHz 100 ± 15 Ω
8) ISO/IEC 11801 ed. 2.0, Cat.5 as a minimum.

Frequency(MHz) Max. Attenuation(dB/100m) Min. NEXT(dB) Min. PS-NEXT(dB) Min. ELFEXT(dB/100m) Min. PS-ELFEXT(dB/100m) Min. RL(dB)
1 2.1 65 62 64 61 -
4 4 56 53 52 49 23
10 6.3 50 47 44 41 25
16 8 47 44 40 37 25
31.25 11.4 43 40 34 31 23.6
62.5 16.5 38 35 28 25 21.5
100 21.3 35 32 24 21 20.1
Packaging Flange x Traverse x Barrel (inches)
a) 500 FT 12 x 6 x 3.5 Continuous length
  [Spool dimensions may vary slightly]

Alpha Essentials Industrial Ethernet Cable:

Alpha Essentials Industrial Ethernet collection is comprised of 10 constructions, all fully compatible with RJ45 connectors. The expansion covers a wide range of categories including CAT 5, CAT 5e, CAT 6, and CAT 7. The expanded offerings now include a CAT 5e LSZH construction (74007) and a flat CAT 6 construction (74010), ideal for limited spaces. Cables are available in conductor sizes from 26-22 AWG and with temperature ranges between -40°C to +90°C.

Alpha Wire’s Industrial Ethernet cables are the perfect solution for applications in the robotics, medical, automation, and transportation industries. The collection includes cables of varying flexibility (continuous, torsional, and moderate flex) and approvals (VW-1, EN 50173, ISO/IEC 11801, & more). Available jacket materials include ZH-PUR, PVC, and TPE.

  • Foil/Braid, TC Braid, & Unshielded options
  • PO, PP, & PE (Foam Skin) Insulation
  • Tinned Copper, Bare Copper, & Copper Alloy Conductors
  • Black & Green (74001 & 74005) Jacket Color Options
