Alpha Wire FIT® Kits are great resources for use in R&D labs, engineering development, and maintenance departments. These kits provide heat-shrink tubing is various sizes and colors in pre-cut pieces up to 6".

Additionally, our FIT-MGKIT-1 comes with a FIT MINIGUN so you can have everything you need to test our product at your fingertips.  We offer our kits in a variety of colors, sizes, shrink ratios and materials.

Request a Sample Download Brochure Consult a Cable Expert

Need a more unique construction? Different color code? Different color Jacket?

Request a Custom Quote Resources

FIT Kit 1.2.7

FIT kit MG

Fit Kits 221

FIT105FIT221MS

FIT321MS

Filter Products By:




Select Products Below To:

1 to 11 of 11 Items | | Previous Next
Select All
Add Selected to My FavoritesAdd Selected to My Favorites Add Selected to Sample Request Form Add Selected to Sample Request Form Email
(Ctrl+Click if PDF doesn't appear)
  Part # Shrink Ratio Material Temperature Ratings
FIT-105-MS-1 2:1  IRR PVC  -20 to 105  AMS DTL-23053/2 CL1 Except Longitudinal Shrinkage, CA Prop 65, CSA, CSA 198, RoHS, UL 224, UL VW-1
FIT-105-MS-2 2:1  IRR PVC  -20 to 105  AMS DTL-23053/2 CL1 Except Longitudinal Shrinkage, CA Prop 65, CSA 198, RoHS, UL 224, UL VW-1
FIT-221-MS-1 2:1  XLPO  -55 to 135  AMS DTL-23053/5 CL 1 Colors, AMS DTL-23053/5 CL 2 Clear, CA Prop 65, CSA 198 Except Clear, RoHS, UL 224 Except Clear
FIT-221-MS-2 2:1  XLPO  -55 to 135  AMS DTL-23053/5 CL 1 Colors, AMS DTL-23053/5 CL 2 Clear, CA Prop 65, CSA 198 Except Clear, RoHS, UL 224 Except Clear
FIT-321-MS-1 3:1  Dual Wall IRR PO  -55 to 110  AMS DTL-23053/4 Class 3, CA Prop 65, CSA 198, RoHS, UL 224, UL VW-1
FIT-MGKIT-1 2:1  XLPO  -55 to 135  AMS DTL-23053/5 CL 1 Colors, CSA 198 Except Clear, UL 224 Except Clear

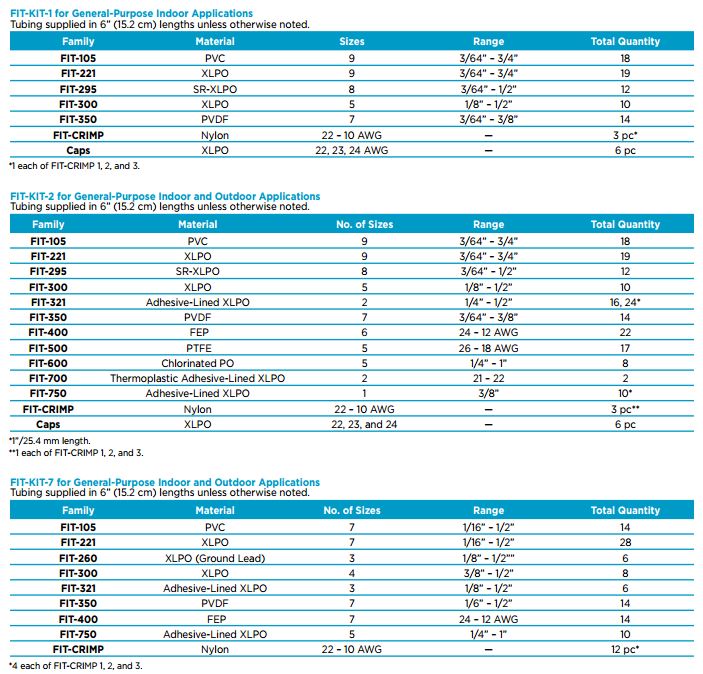

FIT-KIT-1 Various  Various  Various  CA Prop 65, Per Individual Material Type, REACH Regulation, RoHS
FIT-KIT-2 Various  Various  Various  CA Prop 65, Per Individual Material Type, REACH Regulation, RoHS

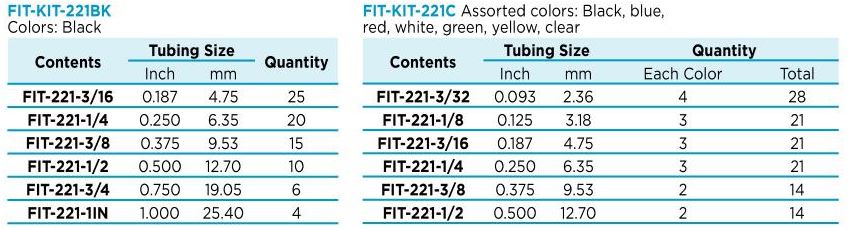

FIT-KIT-221BK 2:1  XLPO  -55 to 135  AMS DTL-23053/5 Class 1, CA Prop 65, CSA 198, RoHS, UL 224
FIT-KIT-221C 2:1  XLPO  -55 to 135  AMS DTL-23053/5 CL 1 Colors, AMS DTL-23053/5 CL 2 Clear, CA Prop 65, CSA 198 Except Clear, RoHS, UL 224 Except Clear
FIT-KIT-7 Various  Various  Various  CA Prop 65, Per Individual Material Type, REACH Regulation, RoHS
