Xtra-Guard Flex TPE 901605CY

Name: 901605CY
Brand: Alpha Wire

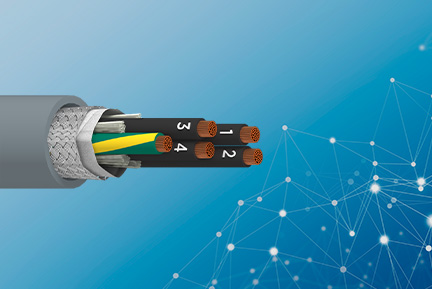

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Download RoHS Certificate

Xtra-Guard Flex TPE 901605CY

Part Number: 901605CY

Download RoHS Certificate

The Stronger Flex Cable

Downtime is costly—whether caused by a complete cable failure or issues that occur when a cable does not meet the demands of its application. Alpha Wire’s Xtra-Guard TPE Flex line combines physical toughness and flex performance in one cable to ensure your peace of mind.

Request Samples View Pricing Add to Cart Find a Stocking Distributor

Construction

Diameters (In)

1) Component 1

5 X 1 COND

a) Conductor

16 (26/30) AWG Bare Copper

0.060

b) Insulation

0.016" Wall, Nom. PVC/ 0.005" Wall NYLON

0.102

(1) Print

ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING AND
INVERTED

(2) Color Code

Alpha Wire Color Code KX

Cond	Color	Cond	Color	Cond	Color
1	GREEN/YELLOW	3	BLACK#2	5	BLACK#4
2	BLACK#1	4	BLACK#3

2) Cable Assembly

5 Components Cabled

a) Twists:

3.2 Twists/foot (min)

b) Orientation:

Components to be arranged from OUTSIDE LAYER to INSIDE LAYER

c) Core Wrap

Polyester Fabric Tape, 25% Overlap, Min.

3) Shield

Tinned Copper BRAID Shield,85% Coverage, Min.

4) Jacket

0.050" Wall, Nom.,TPE

0.417+/- 0.021

a) Color(s)

SLATE

b) Print

ALPHA WIRE-* P/N 901605CY 5C 16 AWG (1.32mm2)
(UL) TYPE TC 90C WET/DRY 600V OIL RES I/II SUN RES
OR PLTC 90C OR C(UL) CIC CONTROL/TC 90C
PVC/NYLON INS FT4 16 AWG
OR CRU AWM I/II A/B 90C 600V FT4
CE ROHS (DATE CODE) (SEQ FOOTAGE)
* = Factory Code
[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]

Applicable Specifications

1) UL
a) Component 1	MTW	90°C Dry / 60°C Wet / 600 V_RMS
b) Overall	TC	90°C Dry / 90°C Wet / 600 V_RMS
	SUN RES
	OIL RES I/II
	PLTC	90°C
2) CSA International	C(RU) AWM I/II A/B	90°C / 600 V_RMS
	FT4
	C(UL) CIC CONTROL	90°C / 600V V_RMS
	C(UL) TC	90°C / 600V V_RMS
3) Other	Conductors ASTM Class K
4) CE:	EU Low Voltage Directive 2014/35/EU

Environmental

1) CE: EU Directive 2011/65/EU(RoHS2), EU Directive 2015/863/EU (RoHS3):
	This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011 and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item.
2) REACH Regulation (EC 1907/2006):
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item.
3) California Proposition 65:	This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information.

Properties

Physical & Mechanical Properties
1) Temperature Range	-30 to 90°C(static), -5 to 90°C (dynamic)
2) Bend Radius	8X Cable Diameter(static), 8X Cable Diameter(dynamic)
3) Pull Tension	111 Lbs, Maximum
4) Sunlight Resistance	Yes
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	600 V_RMS
2) Capacitance	44 pF/ft @1 kHz, Nominal Conductor to Conductor
3) Ground Capacitance	79 pF/ft @1 kHz, Nominal
4) Inductance	0.18 μH/ft, Nominal
5) Conductor DCR	4.1 Ω/1000ft @20°C, Nominal
6) OA Shield DCR	2.3 Ω/1000ft @20°C, Nominal

Other

Packaging	Flange x Traverse x Barrel (inches)
a) 1000 FT	24 x 14 x 12 Continuous length
b) 100 FT	12 x 5.94 x 5 Continuous length
	[Spool dimensions may vary slightly]
Notes:
a) Suitable for intermittent or light duty flexing where cycle count will be less than 1,500,000 cycles.
