Xtra-Guard Industrial Ethernet Flex 75030

Name: 75030
Brand: Alpha Wire

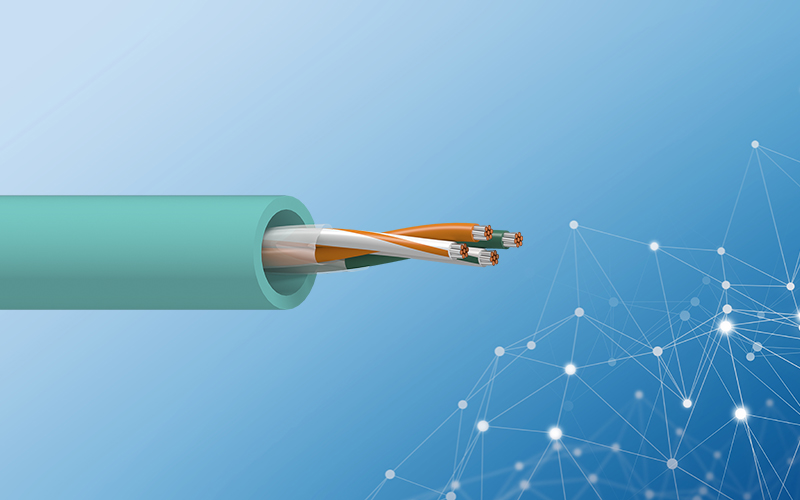

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Download RoHS Certificate

Xtra-Guard Industrial Ethernet Flex 75030

Part Number: 75030

Download RoHS Certificate

Designed to be Tough

Alpha Wire’s Xtra-Guard® Industrial Ethernet flex cables are designed to ensure a reliable Ethernet network without compromising performance in continuous-flex applications.

Offers additional low-temperature flexibility and is significantly more resistant to solvents, chemicals, flame and fuels
Rated for a minimum of 10 million continuous flex cycles and 3 million torsional flex cycles
Select cables available in PLTC to run directly from cable tray to device

Request Samples View Pricing Add to Cart Find a Stocking Distributor

Construction

Diameters (In)

1) Component 1

2 X 1 PAIR

a) Conductor

24 (7/32) AWG Tinned Copper

0.024

b) Insulation

0.0075" Wall, Nom. Polyethylene, High Density

0.039

(1) Color(s)

Pair	Color	Pair	Color	Pair	Color
1	WHITE/ORANGE - ORANGE	2	WHITE/GREEN - GREEN

c) Pair

2/Cond Cabled Together

(1) Twists:

16.0 Twists/foot (approx.)

2) Cable Assembly

2 Components Cabled

a) Twists:

2.0 Twists/foot (min)

b) Orientation:

Components to be arranged from INSIDE LAYER to OUTSIDE LAYER

c) Core Wrap

Foam Polypropylene Tape, 25% Overlap, Min.

3) Jacket

0.032" Wall, Nom.,TPE

0.240+/- 0.021

a) Color(s)

TEAL

b) Print

ALPHA WIRE-A3 P/N 75030 HIGH FLEX CAT5E UTP 2P
24AWG E163860 C(UL)US CMX-OUTDOOR - CM 75C SUN RES
OR AWM 2463 80C 600V OIL RES II
CE ROHS (SEQ FOOTAGE)
[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]

Applicable Specifications

1) UL	CM	75°C
	CMX-Outdoor	75°C
	SUN RES
	AWM/STYLE 2463	80°C / 600 V_RMS
2) Other	ISO/IEC 11801 Category 5
	ANSI/TIA-568.2-D Category 5e
	ODVA EtherNet/IP (TM) Compliant Category 5e
	OIL RES II
3) CE:	EU Low Voltage Directive 2014/35/EU

Environmental

1) CE: EU Directive 2011/65/EU(RoHS2), EU Directive 2015/863/EU (RoHS3):
	This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011 and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item.
2) REACH Regulation (EC 1907/2006):
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item.

Properties

Physical & Mechanical Properties

1) Temperature Range

-40 to 80°C

2) Bend Radius

5X Cable Diameter(static), 17X Cable Diameter(dynamic)

3) Pull Tension

14.1 Lbs, Maximum

4) Sunlight Resistance

Yes

5) Cable Weight

24.5 Lbs/1000Ft

Electrical Properties

(For Engineering purposes only)

1) Voltage Rating

600 V_RMS

2) Characteristic Impedance

100 Ω +/- 15

3) Capacitance Unbalance

330 pf/100m @1 kHz, Maximum

4) Velocity of Propagation

66 %

5) Conductor DCR

14 Ω/100m @20°C, Maximum

6) DCR Unbalance

5 % Maximum

7) Skew

45 ns/100m Maximum

Frequency [MHz]	Max. Insertion Loss [dB]	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACRF [dB]	Min. PSACRF [dB]	Min. Return Loss [dB]
1	2.4	65.3	62.3	63.8	60.8	20.0
4	4.9	56.3	53.3	51.8	48.8	23.0
8	6.9	51.8	48.8	45.7	42.7	24.5
10	7.8	50.3	47.3	43.8	40.8	25.0
16	9.9	47.2	44.2	39.7	36.7	25.0
20	11.1	45.8	42.8	37.8	34.8	25.0
25	12.5	44.3	41.3	35.8	32.8	24.2
31.25	14.1	42.9	39.9	33.9	30.9	23.3
62.5	20.4	38.4	35.4	27.9	24.9	20.7
100	26.4	35.3	32.3	23.8	20.8	19.0

Other

Packaging	Flange x Traverse x Barrel (inches)
a) 1000 FT	16 x 11 x 8 Continuous length
b) 100 FT	12 x 4.5 x 3.5 Continuous length
	[Spool dimensions may vary slightly]
