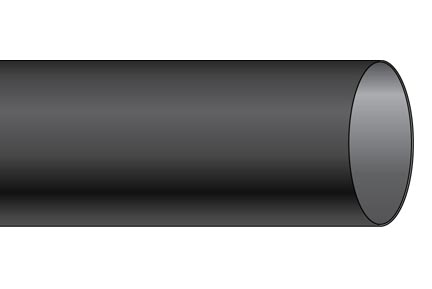

Shrink TubingFIT-700-21

Name: FIT-700-21
Brand: Alpha Wire

Download RoHS Certificate

Shrink TubingFIT-700-21

F70021

Download RoHS Certificate

Our FIT heat-shrink tubing offers a reliable way to protect and seal terminations or add additional mechanical ruggedness. FIT preferred heatshrink products are made from premium compounds under the tightest manufacturing controls. This means FIT will consistently have excellent physical characteristics such as low longitudinal shrinkage and wide temperature ranges while providing an elegant appearance when used alone or on OEM equipment.

Request Samples View Pricing Add to Cart Find a Stocking Distributor

View Pricing View Pricing Find a Stocking Distributor

1) Tubing Type	Adhesive Lined Heat Shrinkable Tubing
2) Tubing Material	Heavy Wall XLPO with Adhesive
3) Minimum Supplied ID(In)	0.750
4) Maximum Recovered ID(In)	0.240
5) Minimum Recovered Adhesive Wall Thickness(In)	0.120
6) Color(s)	BLACK

1) UL	Standard 486
2) CSA International	Standard 198
3) Other	ANSI C119:1
	UV Resistant

1) EU Directive 2011/65/EU(RoHS2):
	All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for RoHS C of C.
2) REACH Regulation (EC 1907/2006):
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.
3) California Proposition 65:	The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

Physical & Mechanical Properties
1) Temperature Range	-55 to 110°C
2) Shrink Ratio	Approximately 3:1
3) Full Recovery Temperature	120°C
4) Minimum Shrink Temperature	120°C
5) Tensile Strength	2100psi, Min	ASTM D638
6) Elongation	600%, Min	ASTM D638
7) Low Temperature Flex(-55°C)	no cracking	AMS-DTL-23053
8) Heat Shock(225°C,4hrs)	no cracking	AMS-DTL-23053
9) Longitudinal Change	+1%/-10%	AMS-DTL-23053
10) Specific Gravity	1.10, Max	ASTM D792
11) Shelf Life	25 Years @ 18 to 35°C
Electrical Properties
1) Dielectric Strength	500 V/mil, Min	ASTM D876
2) Volume Resistivity	1x10¹⁷ ohm-cm, Min	ASTM D876
Chemical Properties
1) Water Absorption	0.10%, Max	ASTM D570
2) Corrosion(0°C,16hrs)	no corrosion	AMS-DTL-23053
3) Fungus Resistance	Pass	AMS-DTL-23053
4) Halogen Free	No
5) Lead Free	Yes

Packaging
6X12 IN
