Pro Met 470047YY

Name: 470047YY
Brand: Alpha Wire

Pro-Met 300V Unshielded Industrial Cable Grey GE

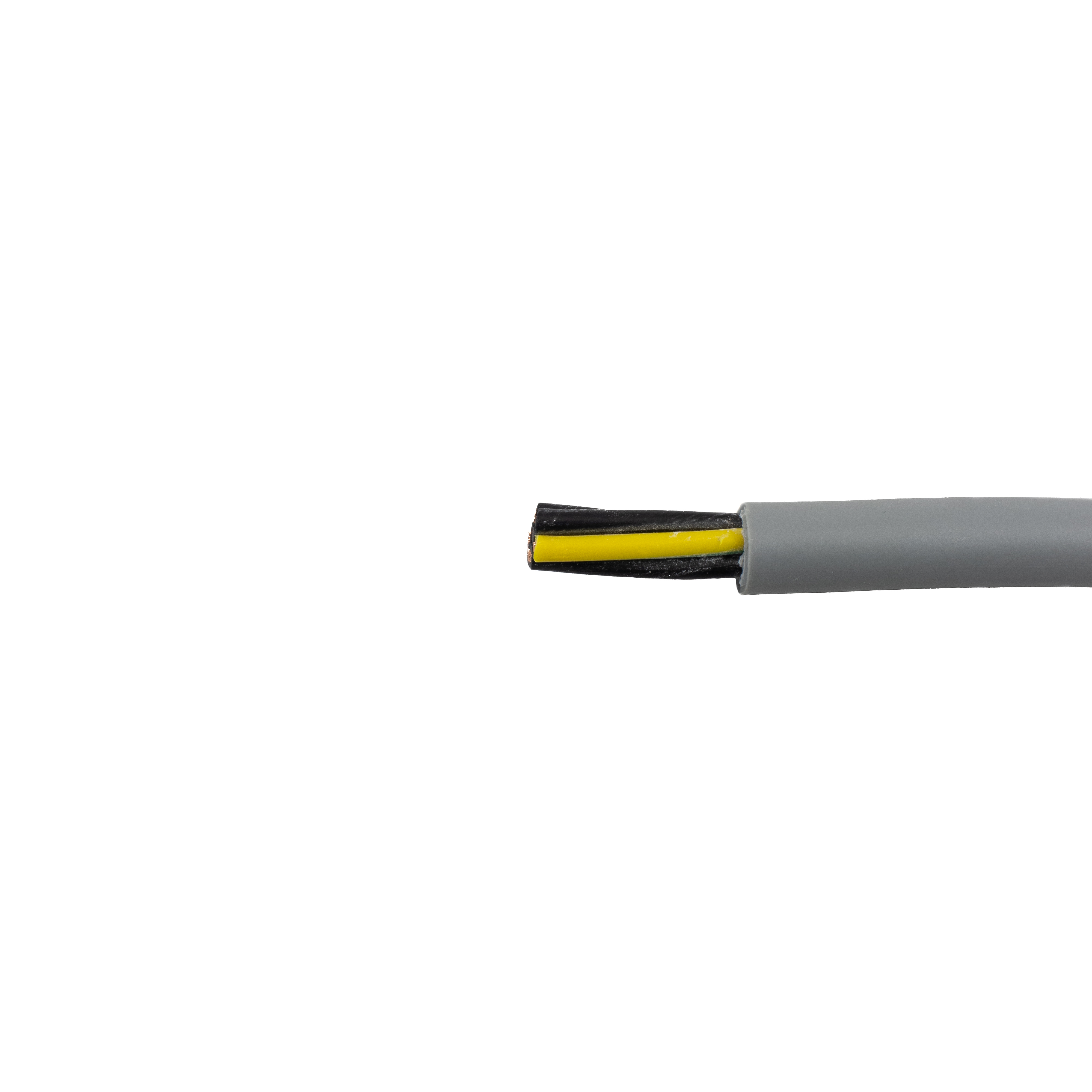

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Download RoHS Certificate

Pro Met 470047YY

Part Number: 470047YY

Download RoHS Certificate

Pro-Met industrial cables are designed to perform better, providing consistent and reliable operation. The result is more uptime, fewer errors, and precise operation of equipment. Pro-Met’s round construction makes it easier to install, seal, and route.

Request Samples View Pricing Add to Cart Find a Stocking Distributor

Construction

Diameters (mm)

1) Component 1

4 X 1 COND

a) Conductor

0.75 (30/.177) mm² Bare Copper

1.11

b) Insulation

0.400 mm Wall, Nom. PVC

1.91+/- 0.08

(1) Print Color

WHITE

(2) Color(s)

Cond	Color	Cond	Color	Cond	Color
1	BLACK #1	3	BLACK #3
2	BLACK #2	4	YELLOW/GREEN

2) Cable Assembly

4 Components Cabled

a) Twists:

10.8 Twists/meter (min)

b) Orientation:

Components to be arranged from INSIDE LAYER to OUTSIDE LAYER

3) Jacket

0.73 mm Wall, Nom.,PVC

6.16 (6.36 Max.)

a) Color(s)

GREY

b) Print

ALPHA WIRE-* P/N 470047YY
PRO-MET 300/500V 4G0.75MM2 PVC/PVC
MULTI CORE CONTROL CABLE ◁ VDE-REG 8770 ▷
CE ROHS DDDYANN XXXXXXX M
* = Factory Code

Applicable Specifications

1) IEC
a) Component 1	EN 60228 Conductors, Class 5
	DIN VDE 0295 Class 5
2) Other	IEC 60332-1 Flame Behavior
	DIN EN 50290-2-22 Oil Resistance
	UV Resistant
3) CE:	EU Low Voltage Directive 2014/35/EU

Environmental

1) CE: EU Directive 2011/65/EU(RoHS2):
	This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C.
2) REACH Regulation (EC 1907/2006):
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.

Properties

Physical & Mechanical Properties
1) Temperature Range	-40 to 80°C(static), -30 to 70°C (dynamic)
2) Bend Radius	4X Cable Diameter(static), 10X Cable Diameter(dynamic)
3) Sunlight Resistance	Yes
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	300/500 V_RMS
2) Conductor DCR	26 Ω/Km @20°C, Max.

Other

Packaging	Flange x Traverse x Barrel (inches)
a) 300 M	12 x 12 x 3.5 Continuous length
b) 100 M	12 x 4.5 x 3.5 Continuous length
c) 50 M	12 x 4.5 x 3.5 Continuous length
	[Spool dimensions may vary slightly]
