Sleeving PIF-130-7/16

Name: PIF-130-7/16
Brand: Alpha Wire

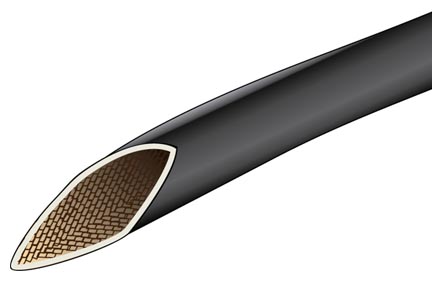

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Download RoHS Certificate

Sleeving PIF-130-7/16

Part Number: PF1307/16

Download RoHS Certificate

Alpha has a sleeving for your application with options that are great for flexible wire harnesses, heat protection, and defense against chemicals or abrasion.

Request Samples View Pricing Add to Cart Find a Stocking Distributor

Construction

1) Tubing Type	PVC Coated Fiberglass Sleeving
2) Tubing Material	Fiberglass Braid Coated with PVC
3) Minimum ID(In)	0.438
4) Maximum ID(In)	0.462
5) Minimum Wall Thickness(In)	0.025
6) Color(s)	BLACK

Applicable Specifications

1) UL	Standard 1441	600 V_RMS
	VW-1
2) Military	MIL-I-3190/2 Class 130, Type B Category b
3) Other	NEMA TF-1
	Grade A

Environmental

1) EU Directive 2011/65/EU(RoHS2):
	All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for RoHS C of C.
2) REACH Regulation (EC 1907/2006):
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.
3) California Proposition 65:	The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

Properties

Physical & Mechanical Properties
1) Temperature Range	-20 to 130°C
Electrical Properties
1) Dielectric Strength	5000 V, Min	ASTM D876
2) Volume Resistivity	1x10⁹ ohm-cm, Min	ASTM D876
Chemical Properties
1) Corrosion(0°C,16hrs)	no corrosion	AMS-DTL-23053
2) Fungus Resistance	Pass	AMS-DTL-23053
3) Halogen Free	No
4) Lead Free	Yes

Other

Packaging
100 FT Max. 3 pieces/Min length 10 FT.
