Sleeving ZIP-GRP-7/8
Sleeving ZIP-GRP-7/8

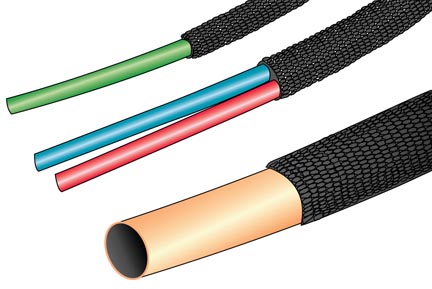

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.
Download RoHS Certificate
Share Alpha Wire's Sleeving ZIP-GRP-7/8
-
twitter
-
linkedin
-
email
-
facebook
-
copy url
-
send as sms
Alpha has a sleeving for your application with options that are great for flexible wire harnesses, heat protection, and defense against chemicals or abrasion.
Construction
| 1) Tubing Type | Expandable Sleeving |
| 2) Tubing Material | Braided PET with Hook and Loop Closure |
| 3) Minimum Supplied ID(In) | 0.500 |
| 4) Maximum Expanded ID (In) | 2.375 |
| 5) Nominal Wall Thickness +/- 0.005(In) | 0.025 |
| 6) Number of Carriers | 88 |
| 7) Number of Yarns | 4 |
| 8) Total Number of Monofilaments | 220 |
| 9) Color(s) | BLACK WITH WHITE TRACER THREAD |
Applicable Specifications
| 1) UL | VW-1 | |
| UZKX2 | ||
| 2) CSA International | 5836 01 |
Environmental
| 1) EU Directive 2011/65/EU(RoHS2): | ||
| All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for RoHS C of C. | ||
| 2) REACH Regulation (EC 1907/2006): | ||
| This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. | ||
| 3) California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. | |
Properties
| Physical & Mechanical Properties | ||
|---|---|---|
| 1) Temperature Range | -70 to 125°C | |
| 2) Tensile Strength | 85000psi, Min | ASTM D638 |
| 3) Specific Gravity | 1.38, Max | ASTM D792 |
| Electrical Properties | ||
| Chemical Properties | ||
| 1) Water Absorption | 0.15%, Max | ASTM D570 |
| 2) Corrosion(0°C,16hrs) | no corrosion | AMS-DTL-23053 |
| 3) Fungus Resistance | Pass | AMS-DTL-23053 |
| 4) Halogen Free | Yes | |
| 5) Lead Free | Yes | |
Other
| Packaging | |
|---|---|
| 50 FT, 25 FT | |
| Notes | |
| 1) Melt temperature: 250C (482F) | |
| 2) Monofilament thickness: .010 in | |
| 3) recommended cutting method: Hot knife | |
