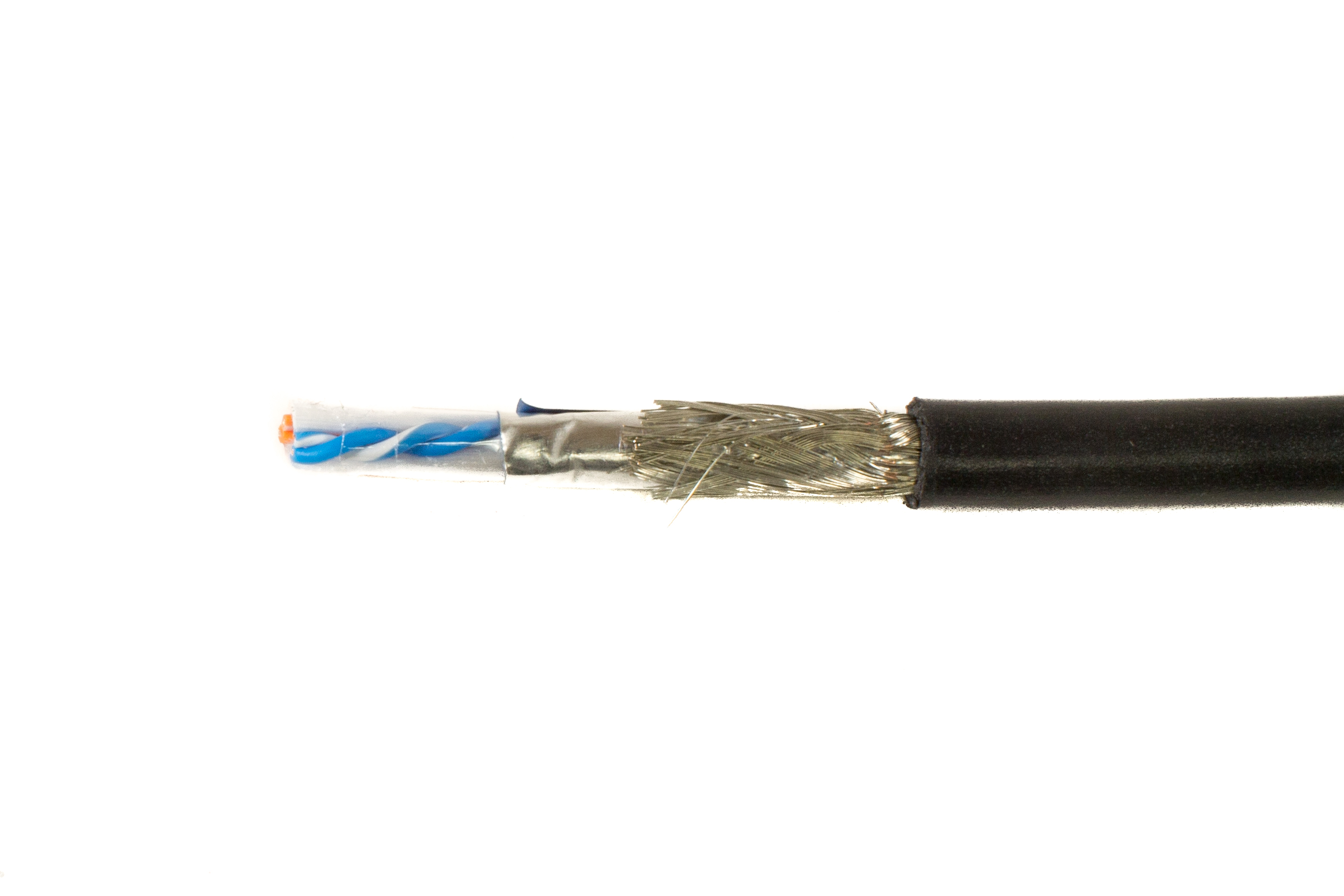

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.
Download RoHS Certificate
Share Alpha Wire's Ethernet Cable 74002
-
twitter
-
linkedin
-
email
-
facebook
-
copy url
-
send as sms
Alpha Essentials Industrial Ethernet collection is comprised of 10 constructions, all fully compatible with RJ45 connectors. The expansion covers a wide range of categories including CAT 5, CAT 5e, CAT 6, and CAT 7. The expanded offerings now include a CAT 5e LSZH construction (74007) and a flat CAT 6 construction (74010), ideal for limited spaces. Cables are available in conductor sizes from 26-22 AWG and with temperature ranges between -40°C to +90°C.
Alpha Wire’s Industrial Ethernet cables are the perfect solution for applications in the robotics, medical, automation, and transportation industries. The collection includes cables of varying flexibility (continuous, torsional, and moderate flex) and approvals (VW-1, EN 50173, ISO/IEC 11801, & more). Available jacket materials include ZH-PUR, PVC, and TPE.
- Foil/Braid, TC Braid, & Unshielded options
- PO, PP, & PE (Foam Skin) Insulation
- Tinned Copper, Bare Copper, & Copper Alloy Conductors
- Black & Green (74001 & 74005) Jacket Color Options
Construction
| Diameter ("in") | ||||||||||||||
| 1) Component 1 | 2 Xx1 PAIR | |||||||||||||
| a) Conductor | 26 (7/34) AWG Bare Copper | 0.019 | ||||||||||||
| b) Insulation | 0.010" Wall, Nom. Polypropylene (PP) | 0.039 | ||||||||||||
| (1) Color(s) | ||||||||||||||
|
||||||||||||||
| c) Pair | 2/Cond Cabled Together | |||||||||||||
| (1) Twists | Staggered Lays | |||||||||||||
| 2) Cable Assembly | 2 Components Cabled | |||||||||||||
| a) Twists | 6.9 Twists/ft. (min.) | |||||||||||||
| c) Core Wrap | Clear Mylar Tape, 25% Overlap (min.) | |||||||||||||
| 3) Shield | Alum/Mylar Tape, 25% Overlap (min.) | |||||||||||||
| a) Foil Direction | Foil Facing Out | |||||||||||||
| b) Braid | Tinned Copper, 80% Coverage (min.) | |||||||||||||
| 4) Jacket | 0.031" Wall, Nom., TPU (ZH) | 0.236 (0.249 max.) | ||||||||||||
| a) Color(s) | BLACK | |||||||||||||
| b) Ripcord | 1 End 810 Denier Nylon | |||||||||||||
| c) Print | ALPHA WIRE-* P/N 74002 2PR 26 AWG INDUSTRIAL ETHERNET SHIELDED ANSI/TIA-568-C.2 CAT5E VERIFIED CE ROHS (SEQ FOOTAGE) * = Factory Code |
|||||||||||||
Applicable Specifications
| 1) UL | AWM/STYLE 20549 | 80°C / 300 VRMS |
| 2) CSA International | FT2 | |
| 3) IEC | EN 60811-2-1 Oil Resistance | |
| EN 60754-2 Acid Gas Generation | ||
| 4) Other | ISO/IEC 11801 Category 5e Patch Cable | |
| ISO/IEC 24702 | ||
| EN 50173-1 | ||
| ANSI/TIA-568-C.2 Category 5e | ||
| 5) CE | EU Low Voltage Directive 2014/35/EC | |
Environmental
| 1) CE: EU Directive 2011/65/EU(RoHS2): | ||
| This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No exemptions are required for RoHS Compliance on this item. Refer to the RoHS Certificate of Compliance for more detail. | ||
| 2) REACH Regulation (EC 1907/2006): | ||
| This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. | ||
Properties
| Physical & Mechanical Properties | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1) Temperature Range | -40 to 80°C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2) Bend Radius | 5X Cable Diameter (static), 10X Cable Diameter (dynamic) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3) Pull Tension | 9 lbs. max. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electrical Properties | Engineering purposes only | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1) Max. operating voltage UL | 300 VRMS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2) Dielectric strength cond. – cond. (2 sec.) | 2.5kVdc | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3) D.C. resistance conductor | < 140 Ω/km | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 4) Resistance unbalance | < 2% |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 5) D.C. insulation resistance | > 5000 MΩ.km | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 6) Mutual capacitance | < 56 nF/km | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 7) Capacitance unbalance | < 1600 pF/km | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8) Velocity of propagation @ 4 – 100 MHz | ≥ 60% | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 9) Skew @ 1 – 100 MHz | ≤ 40 ns/100m | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 10) Propagation delay @ 1 – 100 MHz | ≤ 534 + 36/√f ns/100m |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 11) Mean characteristic impedance (Zcm) @ 100 MHz | 100 ± 15 Ω | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Other
| Packaging | Flange x Traverse x Barrel (inches) |
| a) 500 FT | 12 x 6 x 3.5 Continuous Length |
| Spool dimensions may vary slightly. |
