Ethernet Cable 7602F
Ethernet Cable 7602F
![Alpha Wire Alpha Essentials Industrial Ethernet Cables](https://cdn.belden.com/-/media/Project/AlphaWire/AlphaWire/Alpha-Essentials/Ethernet-2017/FAMILY-PHOTO.jpg?h=2312&iar=0&w=3468&rev=f67c47fac95f4cd8979c44f0886e1590)
This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.
Download RoHS Certificate

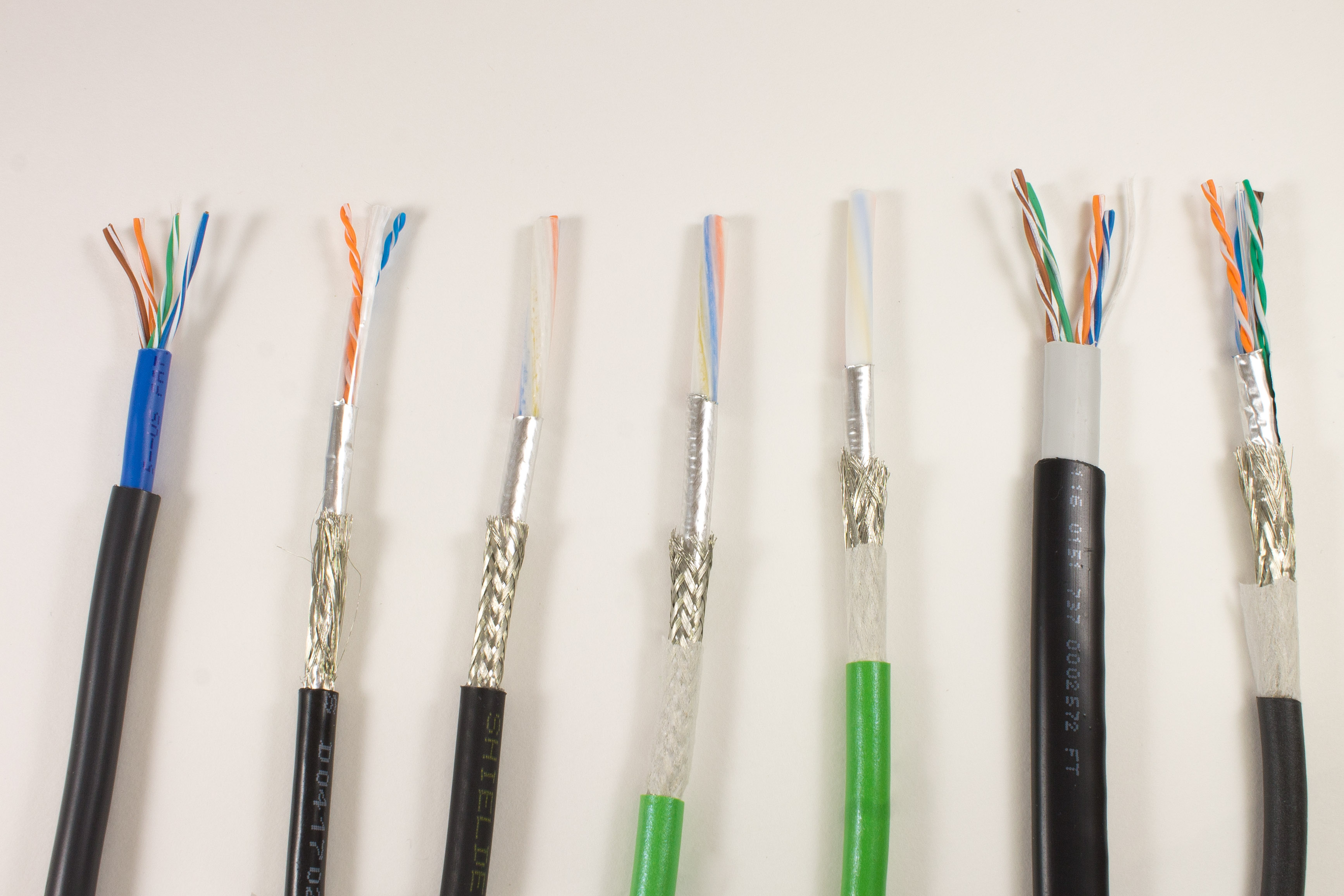

Alpha Essentials Industrial Ethernet collection is comprised of 10 constructions, all fully compatible with RJ45 connectors. The expansion covers a wide range of categories including CAT 5, CAT 5e, CAT 6, and CAT 7. The expanded offerings now include a CAT 5e LSZH construction (74007) and a flat CAT 6 construction (74010), ideal for limited spaces. Cables are available in conductor sizes from 26-22 AWG and with temperature ranges between -40°C to +90°C.
Alpha Wire’s Industrial Ethernet cables are the perfect solution for applications in the robotics, medical, automation, and transportation industries. The collection includes cables of varying flexibility (continuous, torsional, and moderate flex) and approvals (VW-1, EN 50173, ISO/IEC 11801, & more). Available jacket materials include ZH-PUR, PVC, and TPE.
- Foil/Braid, TC Braid, & Unshielded options
- PO, PP, & PE (Foam Skin) Insulation
- Tinned Copper, Bare Copper, & Copper Alloy Conductors
- Black & Green (74001 & 74005) Jacket Color Options
Construction
Diameter ("in") | ||||||||||||||||||||
1) Component 1 | 1 x 4 PAIR | |||||||||||||||||||
a) Conductor | 24 (7/32) AWG Copper Alloy | 0.024 | ||||||||||||||||||
b) Insulation | 0.011" Wall, Nom. Polyplefin (PO) | 0.046 | ||||||||||||||||||
(1) Color(s) | ||||||||||||||||||||
|
||||||||||||||||||||
c) Pair | 2/Cond Cabled Together | |||||||||||||||||||
(1) Twists | 13.7 Twists/ft. (approx.) | |||||||||||||||||||
d) Cabling | 4 PAIR Cabled | |||||||||||||||||||
(1) Twists | 3.0 Twists/ft. min. | |||||||||||||||||||
e) Jacket | 0.020" Wall, Nom., TPE | 0.254 (0.268 max.) | ||||||||||||||||||
(1) Color(s) | WHITE | |||||||||||||||||||
2) Shield | Alum/Mylar Tape, 25% Overlap (min.) | |||||||||||||||||||
a) Foil Direction | Foil Facing Out | |||||||||||||||||||
b) Braid | Tinned Copper, 85% Coverage (min.) | |||||||||||||||||||
3) Jacket | 0.030" Wall, Nom., TPE | 0.342 (0.364 max.) | ||||||||||||||||||
a) Color(s) | BLACK | |||||||||||||||||||
b) Ripcord | 1300 1/E NATURAL POLYESTER | |||||||||||||||||||
c) Print | ALPHA WIRE-* P/N 7602F 4PR 24 AWG CONTINUOUS FLEX INDUSTRIAL ETHERNET (UL) C(UL) TYPE CM 75C FT1 ANSI/TIA-568-C.2 CAT5E PATCH VERIFIED CE ROHS (SEQ FOOTAGE) * = Factory Code Note: Product may have c(UL) or CSA markings depending upon plant of manufacture. |
Applicable Specifications
1) UL | VW-1 | |
AWM/STYLE 20626 | 80°C / 300 VRMS | |
2) CSA International | C(UL) FT1 | |
3) Other | ISO/IEC 11801 Category 5e Patch Cable | |
ICEA 661 Category 5 Patch | ||
NEMA WC-63.1 Category 5e Patch | ||
4) CE | EU Low Voltage Directive 2006/95/EC |
Environmental
1) CE: EU Directive 2011/65/EU(RoHS2) | ||
This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No exemptions are required for RoHS Compliance on this item. Refer to the RoHS Certificate of Compliance for more detail. | ||
2) REACH Regulation (EC 1907/2006) | ||
This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. | ||
3) California Proposition 65 | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
Properties
Physical & Mechanical Properties | |
---|---|
1) Temperature Range | -40 to 80°C (static); -10 to 80°C (dynamic) |
2) Bend Radius | 8X Cable Diameter (static); 10X Cable Diameter (dynamic) |
3) Pull Tension | 40 lbs. max. |
4) Sunlight Resistance | Yes |
5) Cable Weight | 60 lbs./1000ft. |
6) Flex Life | 10,000,000 Cycles |
Electrical Properties | Engineering purposes only |
1) Voltage Rating | 300 VRMS |
2) Characteristic Impedance | 100 Ω +/- 15 |
3) Mutual Capacitance | 15 pf/ft. |
4) Velocity of Propagation | 69% |
5) Conductor DCR | 11 Ω/100m (max.) |
6) Skew | 45 NS/100m (max.) |
7) Pair to Ground Unbalance | 330 pf/100m (max.) |
8) DC Unbalance of a Pair | 5% (max.) |
9) Insertion Loss | 2.5 (max. dB/100m) @ 1 MHz |
4.9 (max. dB/100m) @ 4 MHz | |
6.9 (max. dB/100m) @ 8 MHz | |
7.8 (max. dB/100m) @ 10 MHz | |
9.9 (max. dB/100m) @ 16 MHz | |
11.1 (max. dB/100m) @ 20 MHz | |
12.5 (max. dB/100m) @ 25 MHz | |
14.1 (max. dB/100m) @ 31.25 MHz | |
20.4 (max. dB/100m) @ 62.5 MHz | |
26.4 (max. dB/100m) @ 100 MHz |
Other
Packaging | Flange x Traverse x Barrel (inches) |
a) 1000 FT | 18 x 12 x 8 Continuous Length |
b) 500 FT | 16 x 11 x 8 Continuous Length |
Spool dimensions may vary slightly. |
