High Low Temperature Cable 2819/3

Name: 2819/3
Brand: Alpha Wire

Alpha Wire Alpha Essentials High/Low-Temperature Cable 600V Braid Shield TFE, Fiberglass

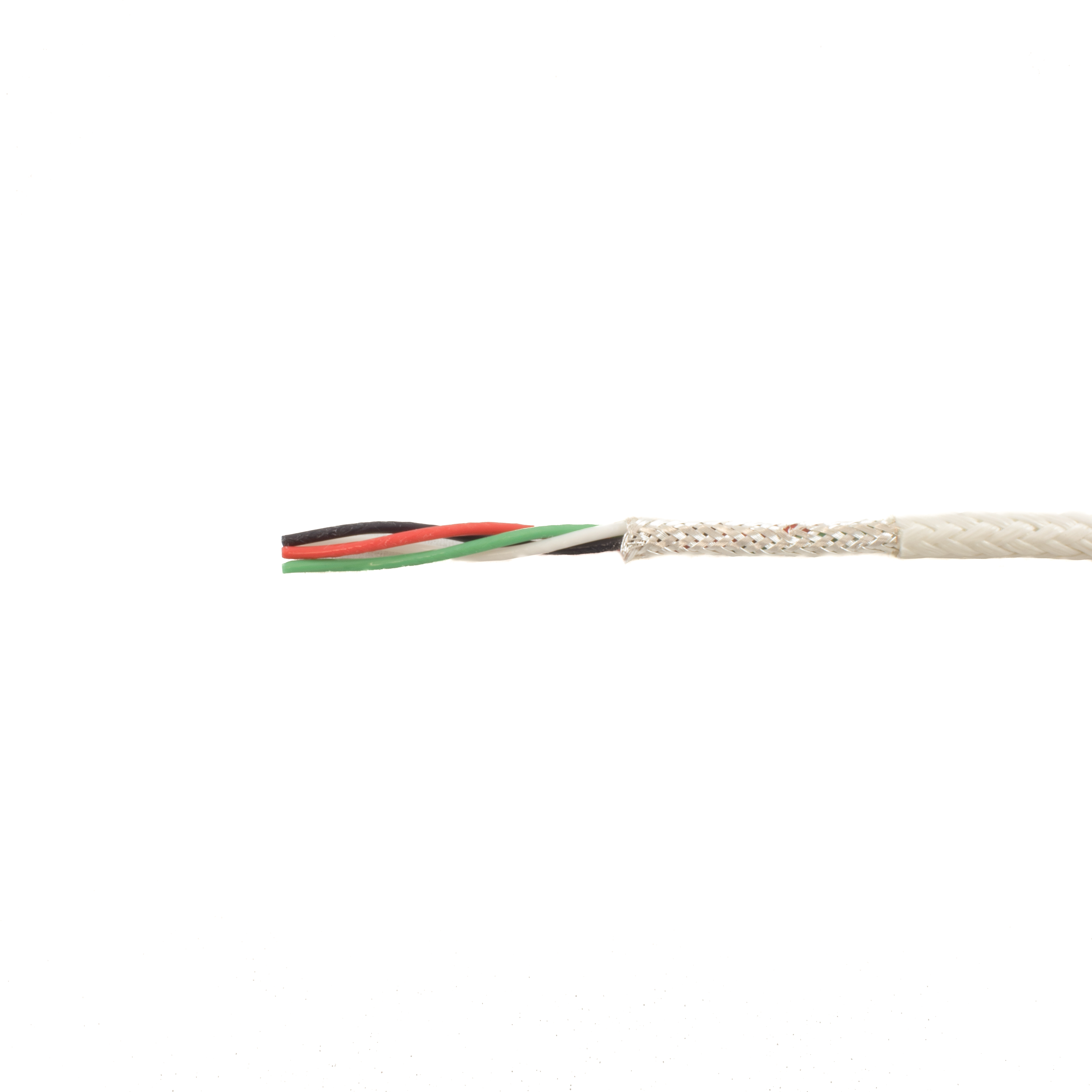

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Download RoHS Certificate

High Low Temperature Cable 2819/3

Part Number: 2819/3

Download RoHS Certificate

Alpha Wire’s high/low temperature cables are available for temperatures ranging from -55°C to 200°C. Our expertise in high-temperature materials such as teflon will help you select the right cable to meet the demanding high-temperature requirements for control and power applications.

Request Samples View Pricing Add to Cart Find a Stocking Distributor

Construction

Diameters (In)

1) Component 1

3 X 1 COND

a) Conductor

18 (19/30) AWG Silver Plated Copper

0.050

b) Insulation

0.010" Wall, Nom. PTFE

0.069

(1) Color Code

Alpha Wire Color Code G

Cond	Color	Cond	Color	Cond	Color
1	WHITE	2	BLACK	3	RED

2) Cable Assembly

3 Components Cabled

a) Twists:

6.0 Twists/foot (min)

b) Orientation:

Components to be arranged from INSIDE LAYER to OUTSIDE LAYER

3) Shield

Silver Platted Copper BRAID Shield,90% Coverage, Min.

4) Jacket

0.014" Wall, Nom.,PTFE Impregnated Fiberglass

0.206 (0.225 Max.)

a) Color(s)

WHITE

b) Jacket Separator

PTFE(skived) Tape, 25% Overlap, Min.

Applicable Specifications

1) Military
a) Component 1	MIL-W-16878/4 (Type E)	200°C / 600 V_RMS
2) Other
a) Component 1	NEMA HP3-EXBHE	200°C / 600 V_RMS
3) CE:	EU Low Voltage Directive 2014/35/EU

Environmental

1) CE: EU Directive 2011/65/EU(RoHS2), EU Directive 2015/863/EU (RoHS3):
	This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011 and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item.
2) REACH Regulation (EC 1907/2006):
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item.
3) California Proposition 65:	This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information.

Properties

Physical & Mechanical Properties
1) Temperature Range	-60 to 200°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	49 Lbs, Maximum
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	600 V_RMS
2) Capacitance	29 pF/ft @1 kHz, Nominal Conductor to Conductor
3) Ground Capacitance	52 pF/ft @1 kHz, Nominal
4) Inductance	0.15 μH/ft, Nominal
5) Conductor DCR	5.6 Ω/1000ft @20°C, Nominal
6) OA Shield DCR	4.4 Ω/1000ft @20°C, Nominal

Other

Packaging	Flange x Traverse x Barrel (inches)
a) 1000 FT	12 x 10.5 x 5 Max. 3 separate pieces; Min length/piece 100 FT.
b) 100 FT	6.5 x 4 x 2.5 Continuous length
	[Spool dimensions may vary slightly]
