EcoFlex® 79030

Name: 79030
Brand: Alpha Wire

EcoFlex 600V Unshielded Multiconductor Cable

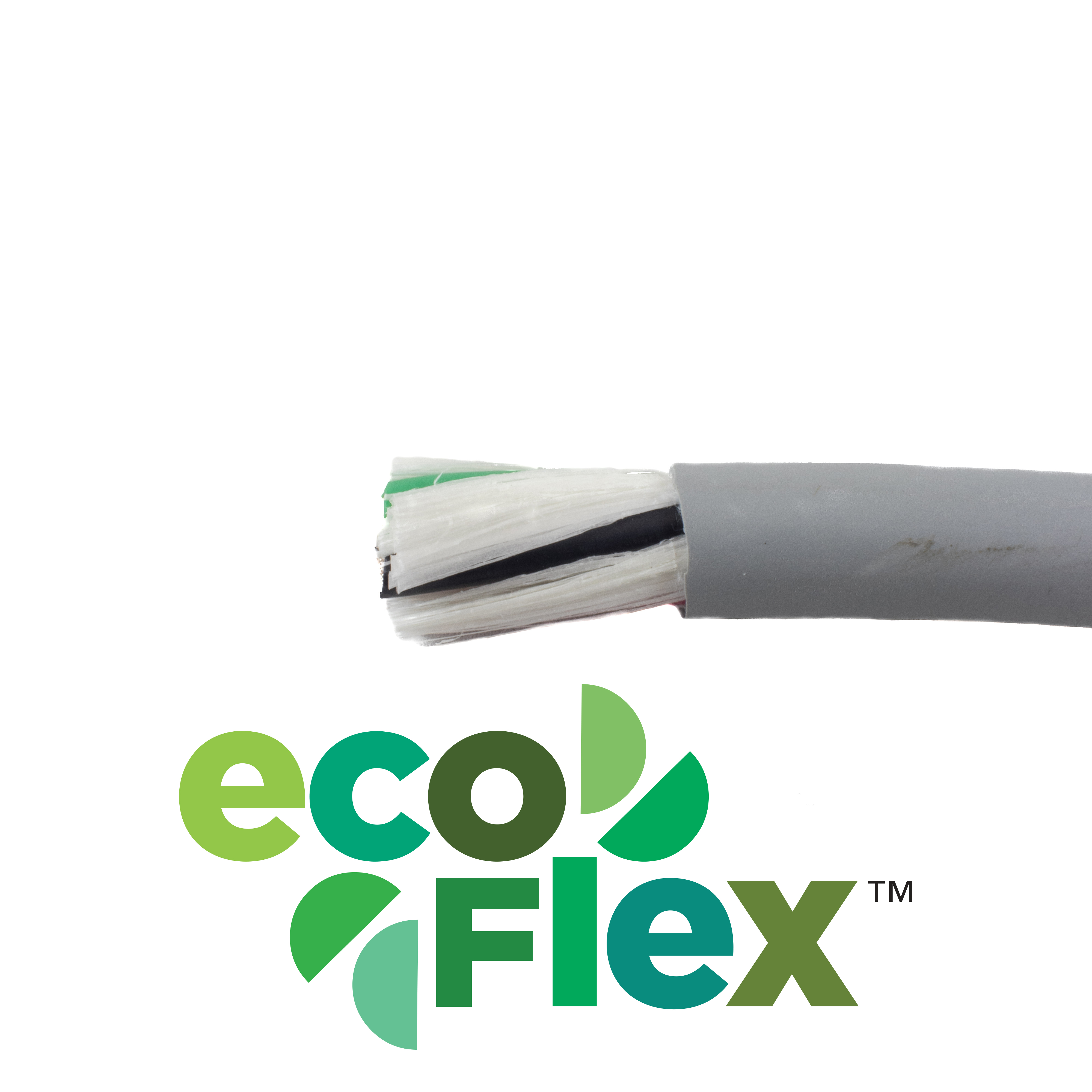

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Download RoHS Certificate

EcoFlex® 79030

Part Number: 79030

Download RoHS Certificate

EcoFlex is the newest innovation in flexing control cables. By combining better performance and minimum environmental impact, EcoFlex uses its mPPE insulation and jacketing to provide all of the advantages in a smaller, lighter flexible control cable.

EcoFlex Features

Recyclable mPPE jacket and insulation
-40°C to 105°C static, -5°C to 105°C flexing
temperature range
RoHS and REACH Compliant
Suitable for use in NFPA 79 applications
Up to 8x Flexing Bend Radius for Shielded cable and 5x for Unshielded cable

EcoFlex Benefits

Up to 32% smaller than PVC
Up to 55% lighter than PVC
Up to 91% lower outgassing
Rated for over 1 million flex life cycles

Request Samples View Pricing Add to Cart Find a Stocking Distributor

Construction

Diameters (In)

1) Component 1

4 X 1 COND

a) Conductor

14 (41/30) AWG Tinned Copper

0.074

b) Insulation

0.011" Wall, Nom. Modified Polyphenylene Ether

0.096

(1) Color Code

Alpha Wire Color Code D

Cond	Color	Cond	Color	Cond	Color
1	BLACK	3	WHITE
2	RED	4	GREEN

2) Cable Assembly

4 Components Cabled

a) Twists:

4.4 Twists/foot (min)

b) Orientation:

Components to be arranged from INSIDE LAYER to OUTSIDE LAYER

c) Core Wrap

Nonwoven Polyester Tape, 25% Overlap, Min.

3) Jacket

0.035" Wall, Nom.,MPPE

0.307+/- 0.012

a) Color(s)

SLATE

b) Print

ALPHA WIRE-* P/N 79030 4C 14 AWG
ECOFLEX(TM) RU AWM 21819 105C 600V OR 21492
80C 300V VW-1 CLASS K C(RU) AWM I/II A/B FT1
600V 105C CE ROHS (SEQ FOOTAGE)
* = Factory Code

Applicable Specifications

1) UL	AWM/STYLE 21819	105°C / 600 V_RMS
	AWM/STYLE 21492	80°C / 300 V_RMS
	VW-1
2) CSA International	C(RU) AWM I/II A/B FT1	105C°C / 600V V_RMS
3) Other	Halogen-Free
	NFPA 79 - 2015 Compliant
4) CE:	EU Low Voltage Directive 2014/35/EU

Environmental

1) CE: EU Directive 2011/65/EU(RoHS2), EU Directive 2015/863/EU (RoHS3):
	This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011 and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item.
2) REACH Regulation (EC 1907/2006):
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item.
3) California Proposition 65:	This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information.

Properties

Physical & Mechanical Properties
1) Temperature Range	-40 to 105°C(static), -5 to 105°C (dynamic)
2) Bend Radius	5X Cable Diameter(static), 5X Cable Diameter(dynamic)
3) Pull Tension	129 Lbs, Maximum
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	600 V_RMS
2) Capacitance	22.6 pF/ft @1 kHz, Nominal Conductor to Conductor
3) Inductance	0.15 μH/ft, Nominal
4) Conductor DCR	2.8 Ω/1000ft @20°C, Nominal

Other

Packaging	Flange x Traverse x Barrel (inches)
a) 1000 FT	18 x 9 x 8 Continuous length
b) 100 FT	10.5 x 5 x 3.5 Continuous length
	[Spool dimensions may vary slightly]
