PV PV0430
PV PV0430

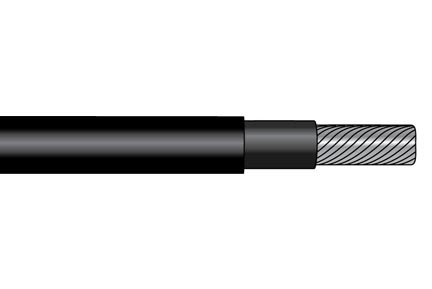

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.
Download RoHS Certificate
Share Alpha Wire's PV PV0430
-
twitter
-
linkedin
-
email
-
facebook
-
copy url
-
send as sms
Our photovoltaic wire gives you reliable wire to meet UL 4703.
Features:
- Sunlight, ozone, and UV resistant
- Moisture resistant
- RoHS compliant
- REACH compliant
- -40°C to +90°C temperature range
Construction
| Diameters (In) | ||
| 1) Component 1 | 1 X 1 HOOKUP | |
| a) Conductor | 4 (420(7x60)/30) AWG Tinned Copper | 0.268 |
| b) Insulation | 0.078" Wall, Nom. XLPE | 0.427+/- 0.006 |
| (1) Separator | Polyester Tape, 10% Overlap, Min. | |
| (2) Color(s) | BLACK | |
| 2) Jacket | 0.032" Wall, Nom.,PVC | 0.491 (0.506 Max.) |
| a) Color(s) | BLACK | |
| b) Print | ALPHA WIRE-* P/N PV0430 4 AWG (UL) PV WIRE 90C WET/DRY 2000V SUN RES -40C VW-1 ROHS * = Factory Code | |
Applicable Specifications
| 1) UL | VW-1 | |
| SUN RES | ||
| -40C | ||
| PV WIRE | 90°C Dry / 90°C Wet / 2000 VRMS |
Environmental
| 1) EU Directive 2011/65/EU(RoHS2), EU Directive 2015/863/EU (RoHS3): | ||
| All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU and the amending Directive 2015/863/EU of 4 June 2015 regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. | ||
| 2) REACH Regulation (EC 1907/2006): | ||
| This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. | ||
Properties
| Physical & Mechanical Properties | |
|---|---|
| 1) Temperature Range | -40 to 90°C |
| 2) Bend Radius | 10X Cable Diameter |
| 3) Pull Tension | 330 Lbs, Maximum |
| 4) Sunlight Resistance | Yes |
| Electrical Properties | (For Engineering purposes only) |
| 1) Voltage Rating | 2000 VRMS |
| 2) Inductance | 0.04 μH/ft, Nominal |
| 3) Conductor DCR | 0.28 Ω/1000ft @20°C, Nominal |
| 4) Current | 140 amps per conductor @30°C, Maximum |
Other
| Packaging | Flange x Traverse x Barrel (inches) |
| a) 1000 FT | 24 x 14 x 12 Continuous length |
| b) 100 FT | 18 x 9 x 8 Continuous length |
| [Spool dimensions may vary slightly] |
