Ethernet Cable 74004

Name: 74004
Brand: Alpha Wire

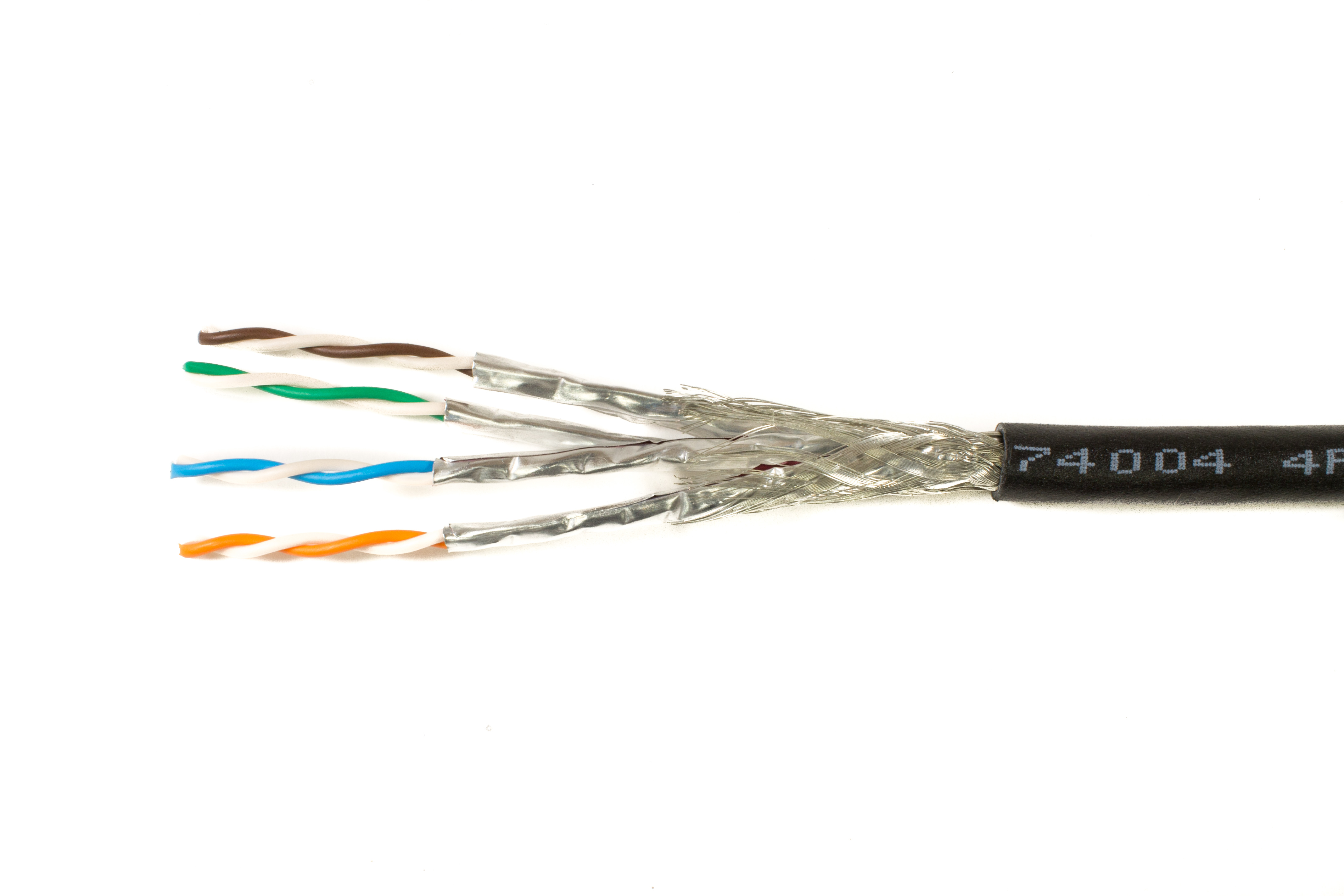

Alpha Wire Alpha Essentials Industrial Ethernet Cable 74004 ZH-PUR CAT 7

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Download RoHS Certificate

Ethernet Cable 74004

Part Number: 74004

Download RoHS Certificate

Alpha Essentials Industrial Ethernet collection is comprised of 10 constructions, all fully compatible with RJ45 connectors. The expansion covers a wide range of categories including CAT 5, CAT 5e, CAT 6, and CAT 7. The expanded offerings now include a CAT 5e LSZH construction (74007) and a flat CAT 6 construction (74010), ideal for limited spaces. Cables are available in conductor sizes from 26-22 AWG and with temperature ranges between -40°C to +90°C.

Alpha Wire’s Industrial Ethernet cables are the perfect solution for applications in the robotics, medical, automation, and transportation industries. The collection includes cables of varying flexibility (continuous, torsional, and moderate flex) and approvals (VW-1, EN 50173, ISO/IEC 11801, & more). Available jacket materials include ZH-PUR, PVC, and TPE.

Foil/Braid, TC Braid, & Unshielded options
PO, PP, & PE (Foam Skin) Insulation
Tinned Copper, Bare Copper, & Copper Alloy Conductors
Black & Green (74001 & 74005) Jacket Color Options

Request Samples View Pricing Add to Cart Find a Stocking Distributor

Construction

Diameter ("in")

1) Component 1

4 x 1 PAIR

a) Conductor

26 (7/34) AWG Bare Copper

0.019

b) Insulation

0.0118" Wall, Nom. Polyethylene, Foam-Skin

0.042

(1) Color(s)

Pair	Color	Pair	Color	Pair	Color
1	WHITE - BLUE	3	WHITE - GREEN
2	WHITE - ORANGE	4	WHITE - BROWN

c) Pair

2/Cond Cabled Together

(1) Twists

Staggered Lays

Individually Applied:

d) Shield

Alum/Mylar Tape, 25% Overlap (min.)

(1) Foil Direction

Foil Facing Out

2) Cable Assembly

4 Components Cabled

a) Twists

4.4 Twists/ft. (min.)

3) Shield

Tinned Copper BRAID Shield, 65% Coverage (min.)

4) Jacket

0.028" Wall, Nom., TPU (ZH)

0.268 (0.283 max.)

a) Color(s)

BLACK

b) Print

ALPHA WIRE-* P/N 74004 4PR 26 AWG
INDUSTRIAL ETHERNET SHIELDED
ANSI/TIA-568-C.2 CAT7 VERIFIED FT2
CE ROHS (SEQ FOOTAGE)
* = Factory Code

Applicable Specifications

1) CSA International	FT2
2) IEC	EN 60811-2-1 Oil Resistance
	EN 60754-2 Acid Gas Generation
3) Other	ANSI/TIA-568-C.2 Category 7
	ISO/IEC 11801 Category 7
	EN 50173-1
4) CE	EU Low Voltage Directive 2014/35/EC

Environmental

1) CE: EU Directive 2011/65/EU(RoHS2)
	This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No exemptions are required for RoHS Compliance on this item. Refer to the RoHS Certificate of Compliance for more detail.
2) REACH Regulation (EC 1907/2006)
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.

Properties

Physical & Mechanical Properties

1) Temperature Range

-40 to 80°C

2) Bend Radius

5X Cable Diameter (static), 10X Cable Diameter (dynamic)

3) Pull Tension

18 lbs. max.

Electrical Properties

Engineering purposes only

1) Max. operating voltage UL

300 V_RMS

2) Dielectric strength cond. – cond. (2 sec.)

2.5kVdc

3) D.C. resistance conductor

< 140 Ω/km

4) Resistance unbalance

< 2%

5) D.C. insulation resistance

> 5000 MΩ.km

6) Mutual capacitance

< 56 nF/km

7) Capacitance unbalance

< 1600 pF/km

8) Velocity of propagation

≥ 70%

9) Skew @ 100 MHz

≤ 40 ns/100m

10) Propagation delay

≤ 534 + 36/√f ns/100m

11) Mean characteristic impedance (Zcm) @ 100 MHz

100 ± 15 Ω

12) Input impedance 1-600MHz

100 ± 15 Ω

13) Transfer Impedance (Zt) @ 10 MHz

< 5 mOhm/m

Frequency(MHz)	Max. Attenuation(dB/100m)	Min. NEXT(dB)	Min. PS-NEXT(dB)	Min. ELFEXT(dB/100m)	Min. PS-ELFEXT(dB/100m)	Min. RL(dB)
1	2.7	80	77	-	-	-
4	5.5	80	77	58	55	23
10	8.5	80	77	50	47	25
16	10.8	80	77	46	43	25
20	12.1	80	77	44	41	25
31.25	15.2	80	77	40	37	23.6
62.5	27.8	75.1	72.1	34	31	21.5
100	27.8	72.4	69.4	30	27	20.1
200	40.1	67.9	64.9	24	21	18
300	50	65.3	62.3	20	17	17.3
600	73.3	60.8	57.8	14	11	17.3

Other

Packaging	Flange x Traverse x Barrel (inches)
a) 500 FT	12 x 6 x 3.5 Continuous Length
	Spool dimensions may vary slightly.
