Alpha Wire Alpha Essentials Industrial Ethernet Cable 74007 ZH-PUR CAT 5e

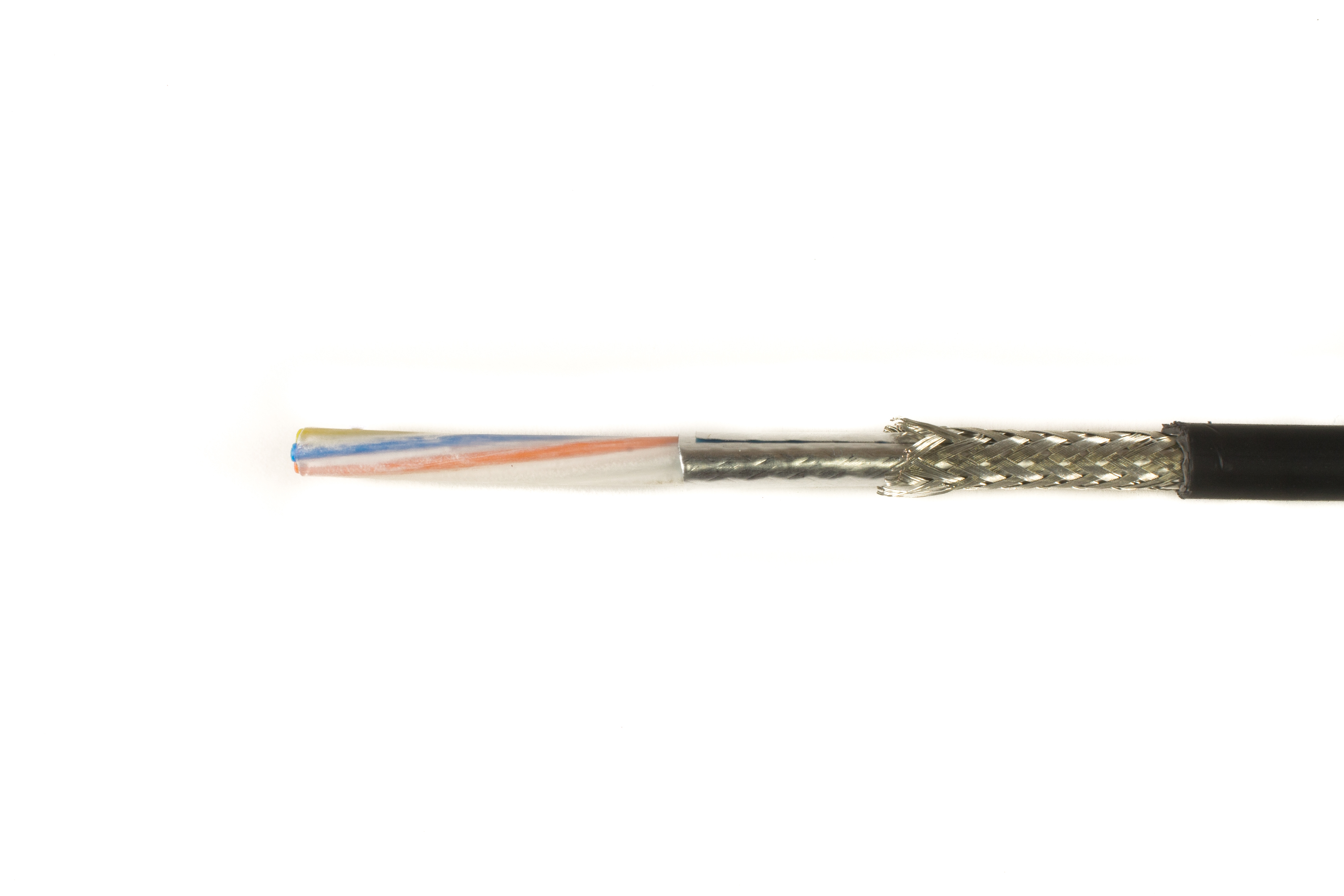

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Download RoHS Certificate

Ethernet Cable 74007

Part Number: 74007

Download RoHS Certificate

Alpha Essentials Industrial Ethernet collection is comprised of 10 constructions, all fully compatible with RJ45 connectors. The expansion covers a wide range of categories including CAT 5, CAT 5e, CAT 6, and CAT 7. The expanded offerings now include a CAT 5e LSZH construction (74007) and a flat CAT 6 construction (74010), ideal for limited spaces. Cables are available in conductor sizes from 26-22 AWG and with temperature ranges between -40°C to +90°C.

Alpha Wire’s Industrial Ethernet cables are the perfect solution for applications in the robotics, medical, automation, and transportation industries. The collection includes cables of varying flexibility (continuous, torsional, and moderate flex) and approvals (VW-1, EN 50173, ISO/IEC 11801, & more). Available jacket materials include ZH-PUR, PVC, and TPE.

Foil/Braid, TC Braid, & Unshielded options
PO, PP, & PE (Foam Skin) Insulation
Tinned Copper, Bare Copper, & Copper Alloy Conductors
Black & Green (74001 & 74005) Jacket Color Options

Request Samples View Pricing Add to Cart Find a Stocking Distributor

Construction

Diameter ("in")

1) Component 1

1 x 4 COND

a) Conductor

22 (19/34) AWG Tinned Copper

0.032

b) Insulation

0.015" Wall, Nom. Polyolefin

0.062

(1) Color(s)

Cond	Color	Cond	Color	Cond	Color
1	WHITE	3	YELLOW
2	BLUE	4	ORANGE

c) Cabling

4 COND Cabled

(1) Twists

6.0 Twists/ft. min.

d) Jacket

0.009" Wall, Nom., LSZH

0.169

(1) Color(s)

WHITE

2) Shield

Alum/Mylar Tape, 25% Overlap (min.)

a) Foil Direction

Foil Facing Out

b) Braid

Tinned Copper, 80% Coverage (min.)

3) Jacket

0.035" Wall, Nom., TPU (ZH)

0.264 (0.279 max.)

a) Color(s)

BLACK

b) Print

ALPHA WIRE-* P/N 74007 4C 22 AWG
INDUSTRIAL ETHERNET PROFINET TYPE C
SHIELDED CAT5E
CE ROHS (SEQ FOOTAGE)
* = Factory Code

Applicable Specifications

1) IEC	EN 60811-2-1 Oil Resistance
	EN 60228 Conductors, Class 5
	EN 60332-1 Flame Behavior
	EN 60332-3 Flame Behavior
	EN 60754-1 Acid Gas Generation
	EN 60754-2 Acid Gas Generation
	EN 61034-2 Smoke Emission
2) Other	ISO/IEC 11801 Category 5e Patch Cable
3) CE	EU Low Voltage Directive 2014/35/EC

Environmental

1) CE: EU Directive 2011/65/EU(RoHS2)
	This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No exemptions are required for RoHS Compliance on this item. Refer to the RoHS Certificate of Compliance for more detail.
2) REACH Regulation (EC 1907/2006)
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.

Properties

Physical & Mechanical Properties

1) Temperature Range

-40 to 90°C

2) Bend Radius

5X Cable Diameter (static), 10X Cable Diameter (dynamic)

3) Pull Tension

27 lbs. max.

Electrical Properties

Engineering purposes only

1) Max. operating voltage UL

300 V_RMS

2) Test voltage wire-wire/wire-screen

2.5kVdc

3) Maximum conductor DC-resistance @ 20°C

57.1 Ω/km

4) Transfer impedance @ 10MHz

< 10 mOhm/m

5) Nom. velocity of propagation

66%

6) Delay

< 5.3 ns/m

7) Impedance @ 1 – 100 MHz

100 +/- 15 Ω

8) ISO/IEC 11801 ed. 2.0, Cat.5 as a minimum.

Frequency(MHz)	Max. Attenuation(dB/100m)	Min. NEXT(dB)	Min. FEXT(dB/100m)
1	2.1	65.3	64
4	4.1	56.3	52
10	6.5	50	43.8
16	8.3	47	40
31.25	11.7	42.9	33.9
62.5	17.0	38.4	28
100	22.0	35.3	24

Other

Packaging	Flange x Traverse x Barrel (inches)
a) 500 FT	12 x 6 x 3.5 Continuous Length
	Spool dimensions may vary slightly.
