Ethernet Cable 74010

Name: 74010
Brand: Alpha Wire

Alpha Wire Alpha Essentials Industrial Ethernet Cable 74010 PVC CAT 6

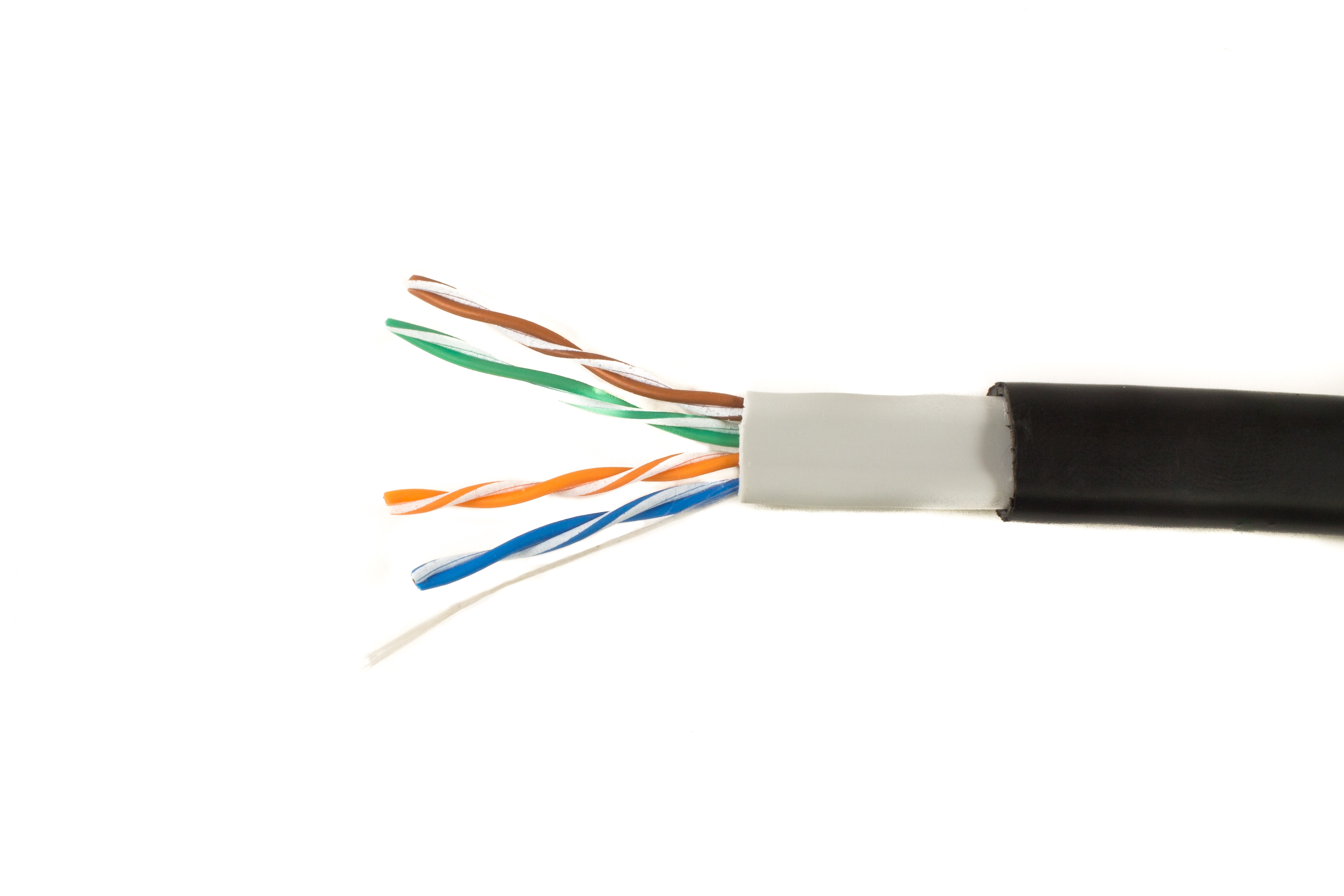

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Download RoHS Certificate

Ethernet Cable 74010

Part Number: 74010

Download RoHS Certificate

Alpha Essentials Industrial Ethernet collection is comprised of 10 constructions, all fully compatible with RJ45 connectors. The expansion covers a wide range of categories including CAT 5, CAT 5e, CAT 6, and CAT 7. The expanded offerings now include a CAT 5e LSZH construction (74007) and a flat CAT 6 construction (74010), ideal for limited spaces. Cables are available in conductor sizes from 26-22 AWG and with temperature ranges between -40°C to +90°C.

Alpha Wire’s Industrial Ethernet cables are the perfect solution for applications in the robotics, medical, automation, and transportation industries. The collection includes cables of varying flexibility (continuous, torsional, and moderate flex) and approvals (VW-1, EN 50173, ISO/IEC 11801, & more). Available jacket materials include ZH-PUR, PVC, and TPE.

Foil/Braid, TC Braid, & Unshielded options
PO, PP, & PE (Foam Skin) Insulation
Tinned Copper, Bare Copper, & Copper Alloy Conductors
Black & Green (74001 & 74005) Jacket Color Options

Request Samples View Pricing Add to Cart Find a Stocking Distributor

Construction

Diameter ("in")

1) Component 1

1 x 4 PAIR

a) Conductor

23 (SOLID) AWG Bare Copper

0.022

b) Insulation

0.009" Wall, Nom. Polyolefin

0.038

(1) Color(s)

Pair	Color	Pair	Color	Pair	Color
1	BLUE - WHITE/BLUE	3	GREEN - WHITE/GREEN
2	ORANGE - WHITE/ORANGE	4	BROWN - WHITE/BROWN

c) Pair

Bonded Pair

(1) Twists

Staggered Lays

d) Cabling

4 PAIR Cabled

(1) Orientation

Parallel

e) Jacket

0.018" Wall, Nom., PVC

(1) Color(s)

WHITE

(2) Ripcord

1 End 810 Denier Nylon

2) Jacket

0.035" Wall, Nom., PVC

0.475X0.265

(0.489X0.289 max.)

a) Color(s)

BLACK

b) Ripcord

1 End 810 Denier Nylon

c) Print

ALPHA WIRE-* P/N 74010 4PR 23 AWG
75C (UL) CMR OR C(UL) CMR --- TIA-568-C.2 & ISO/IEC 11801
CAT 6 SUN RES OIL RES II --- US PATENT 6273977, 5821467
CE ROHS (2 FT, 7 DIGIT SEQUENTIAL NUMBER) FT
Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.
* = Factory Code

Applicable Specifications

1) UL	CMR	75°C
2) CSA International	C(UL) TYPE CMR	75°C
	FT4
3) Other	TIA-568-C.2 Cat6 ISO/IEC 11801 Category 6
4) CE	EU Low Voltage Directive 2014/35/EC

Environmental

1) CE: EU Directive 2011/65/EU(RoHS2)
	This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015. No exemptions are required for RoHS Compliance on this item. Refer to the RoHS Certificate of Compliance for more detail.
2) REACH Regulation (EC 1907/2006)
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.
3) California Proposition 65	Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information.

Properties

Physical & Mechanical Properties

1) Temperature Range

-25 to 75°C

2) Bend Radius

4X Cable Diameter

3) Pull Tension

32 lbs. max.

4) Sunlight Resistance

Yes

5) Cable Weight

30 lbs./1000ft.

Electrical Properties

Engineering purposes only

1) Voltage Rating

300 V_RMS

2) Characteristic Impedance

100 Ω +/- 15

3) Mutual Capacitance

15 pF/ft @1 kHz, Nominal

4) Velocity of Propagation

70%

5) Conductor DCR

27.4 Ω/1000ft. @20°C, Nominal

Frequency(MHz)	Max. Attenuation(dB/100m)	Min. NEXT(dB)	Min. PSNEXT(dB)	Min. ACR(dB)
1	1.9	74.3	72.3	70
4	3.7	65.3	63.3	59
8	5.3	60.3	58.3	53
10	5.9	59.3	57.3	51
16	7.5	56.3	54.3	46
20	8.4	54.8	52.8	44
25	9.5	53.4	51.4	42
31.25	10.6	51.9	49.9	39
62.5	15.4	47.4	45.4	30
100	19.8	44.3	42.3	25
155	25.1	41.5	39.5	14
200	29	39.9	37.9	10

Frequency (MHz)	Min. PSACR(dB)	Min. RL(dB)	Min. ELFEXT(dB)	Min. PSELFEXT(dB)
1	70	20	67.8	64.8
4	59	23	55.7	52.7
8	53	24.5	49.7	46.7
10	51	25	47.8	44.8
16	46	25	43.7	40.7
20	44	25	41.7	38.7
25	42	24.3	39.8	36.8
31.25	39	23.6	37.9	34.9
62.5	30	21.5	31.8	28.8
100	25	21	27.8	24.8
155	14	21	23.9	20.9
200	10	21	21.7	18.7

Other

Packaging	Flange x Traverse x Barrel (inches)
a) 500 FT	16 x 11 x 8 Continuous Length
	Spool dimensions may vary slightly.
