Xtra-Guard 2 25452

Name: 25452
Brand: Alpha Wire

Xtra-Guard 2 300 V Foil Shielded Multipair Cable

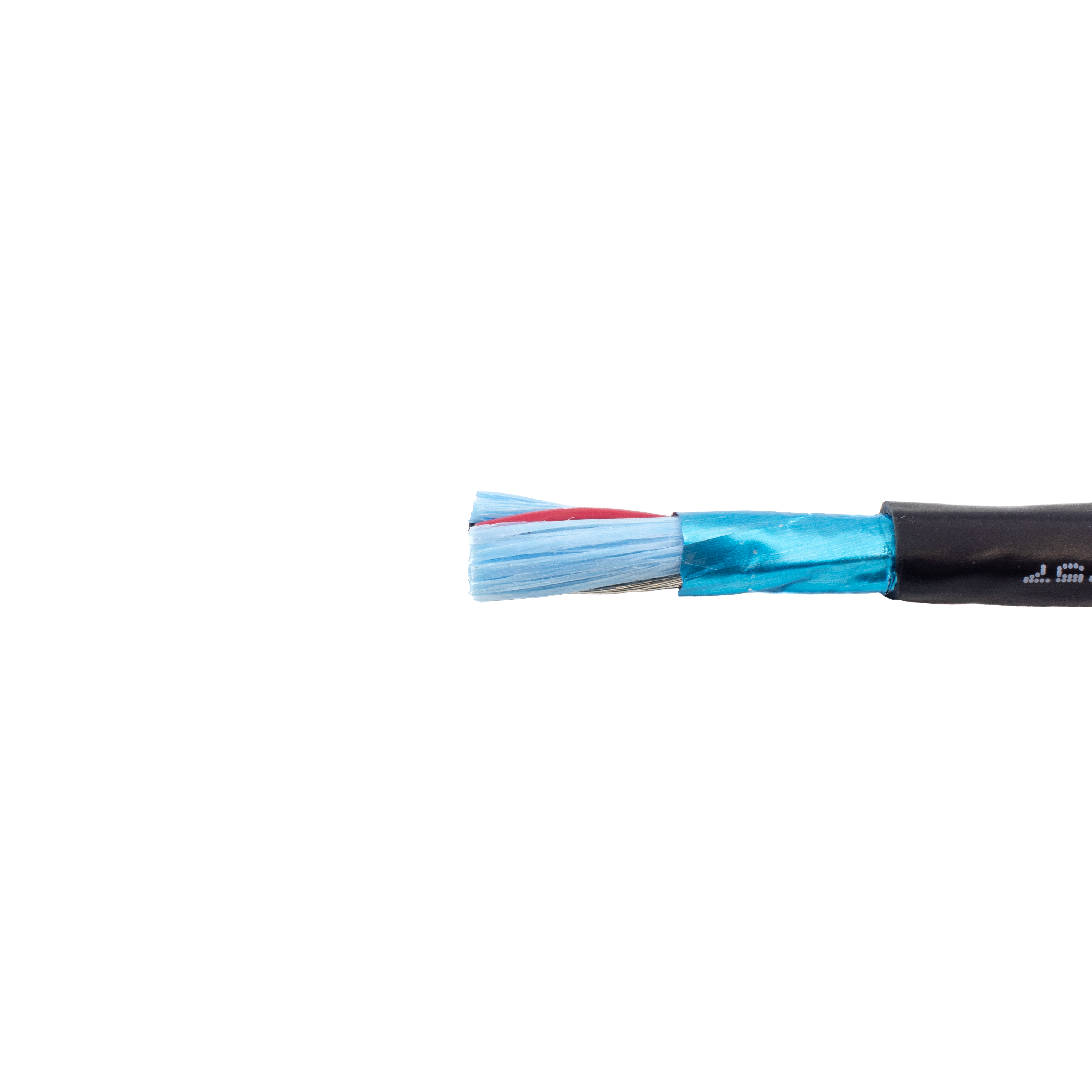

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Download RoHS Certificate

Xtra-Guard 2 25452

Part Number: 25452

Download RoHS Certificate

Xtra-Guard® 2 - Abrasion resistant to withstand mechanical abuse

Heavy-duty cable for use in industrial applications where abrasion and mechanical abuse is common
Features a specially formulated, rugged polyurethane jacket offering three times the tear and abrasion resistance of ordinary PVC
Provides extreme resistance to cut-through and physical damage
Designed with moderate to high resistance to most oils, solvents, chemicals, and fuels
Offers outstanding ultraviolet light stability in all jacket colors
Provides exceptional protection against EMI interference when Supra-Shield is specified
Meets NFPA Standard 79 for industrial machinery*

Need a more unique construction? Different color code? Different color Jacket?

Request Samples View Pricing Add to Cart Find a Stocking Distributor

Construction

Diameters (In)

1) Component 1

2 X 1 PAIR

a) Conductor

20 (7/28) AWG Tinned Copper

0.038

b) Insulation

0.016" Wall, Nom. PVC

0.070

(1) Color Code

Alpha Wire Color Code A

Pair	Color	Pair	Color	Pair	Color
1	BLACK-RED	2	BLACK-WHITE

c) Pair

2/Cond Cabled Together

(1) Twists:

6.0 Twists/foot (min)

2) Cable Assembly

2 Components Cabled

a) Twists:

3.7 Twists/foot (min)

b) Orientation:

Components to be arranged from INSIDE LAYER to OUTSIDE LAYER

c) Core Wrap

Nonwoven Polyester Tape, 25% Overlap, Min.

3) Shield:

Alum/Mylar Tape, 25% Overlap, Min.

a) Foil Direction

Foil Facing In

b) Drain Wire

20 (7/28) AWG Tinned Copper

4) Jacket

0.032" Wall, Nom.,Polyurethane (TPU)

0.302 (0.316 Max.)

a) Color(s)

Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White

b) Ripcord

1 End 810 Denier Nylon

c) Print

ALPHA WIRE-* P/N 25452
XTRAGUARD(R) 2 RU AWM 20668 VW-1 OR CRU
AWM I/II A/B 90C 300 VOLTS FT1 CE
ROHS (SEQ FOOTAGE)
* = Factory Code

Applicable Specifications

1) UL
a) Component 1	AWM/STYLE 1569	105°C / 300 V_RMS
b) Overall	AWM/STYLE 20668	90°C / 300 V_RMS
	VW-1
2) CSA International	C(RU) AWM I/II A/B	90°C / 300 V_RMS
	FT1
3) CE:	EU Low Voltage Directive 2014/35/EU

Environmental

1) CE: EU Directive 2011/65/EU(RoHS2), EU Directive 2015/863/EU (RoHS3):
	This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011 and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item.
2) California Proposition 65:	This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information.

Properties

Physical & Mechanical Properties
1) Temperature Range	-30 to 90°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	44 Lbs, Maximum
4) Sunlight Resistance	Yes
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	300 V_RMS
2) Mutual Capacitance	35 pF/ft @1 kHz, Nominal
3) Ground Capacitance	63 pF/ft @1 kHz, Nominal
4) Characteristic Impedance	58 Ω
5) Inductance	0.19 μH/ft, Nominal
6) Conductor DCR	10.3 Ω/1000ft @20°C, Nominal
7) OA Shield DCR	8.2 Ω/1000ft @20°C, Nominal

Other

Packaging	Flange x Traverse x Barrel (inches)
a) Bulk(Made-to-order)
